Flow / no flow detection

FlowJam S Material Flow Monitor

A microwave detector for contactless monitoring of material flow. It signals flow or no flow for solids of all types, sees through deposits and non-conductive walls, and detects clogging and standstill.

0–2 mDetection range (up to 6.6 ft)
0.1 m/sMin material speed (0.33 ft/s)
1,000 °CMax with ceramic mounting (1,832 °F)
20 barMax pressure with adapter (290 psi)

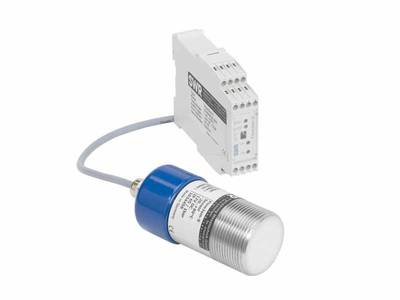

FlowJam S microwave flow detector
  • Insensitive to material deposits
  • For any line diameter
  • With an adapter, usable up to 220 °C (428 °F) and 20 bar (290 psi)
  • With ceramic mounting, usable up to 1,000 °C (1,832 °F)
  • Usable in dust Ex zones
  • Detection through all non-conductive walls
  • Also available as a compact device with integrated electronics
  • Detects material clogging and material standstill

Use and function

How FlowJam S detects movement

FlowJam S detects solid flows of all types and distinguishes two switching states:

  • Material flow
  • Material clogging, standstill or an empty pipe

It works without contact, using microwaves and the Doppler effect to detect material movement. The microwave penetrates material coating on the sensor, so movement behind the coating is still detected. That makes the measurement especially secure in the process.

If container walls, housings or pipelines are non-metallic, the measurement can be made from outside. A process adapter allows use at high temperatures and pressures and in dust and gas Ex zones.

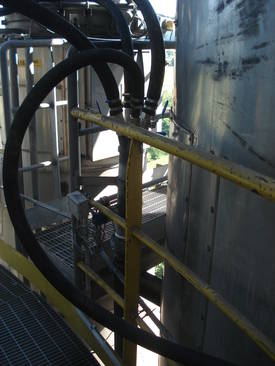

FlowJam S monitoring material flow in a pipe
FlowJam S in use
FlowJam S measuring principle
Measuring principle

Mounting and installation

Three ways to mount the sensor

  • Screwed into a 1½ in threaded connection
  • With a DN 40 flange
  • With a pipe clamp or other holding bracket
FlowJam S mounted with a threaded connection
FlowJam S mounted with a flange
FlowJam S mounted with a pipe clamp

Technical data

FlowJam S specifications

Imperial values are converted from the manufacturer's metric data. Confirm critical values against the product information PDF.

Sensor
Voltage12 V DC, powered by the transmitter
Power consumptionApprox. 1.5 W
HousingStainless steel 1.4571
Protection systemIP 65
Use in Ex zonesDust Ex zone 22Dust Ex zone 20/22 with process adapter
Process temperature−20 to +80 °C (−4 to +176 °F), standard−20 to +220 °C (−4 to +428 °F) with process adapter−20 to +1000 °C (−4 to +1,832 °F) with ceramic flange
Ambient temperature−20 to +60 °C (−4 to +140 °F)
Working pressureMax. 1 bar (14.5 psi), standardMax. 20 bar (290 psi) with process adapter
Detection range0 to 2 m (0 to 6.6 ft), depending on the application
Required material speedMin. 0.1 m/s (0.33 ft/s)
Measuring frequencyK-band 24.125 GHz (±100 MHz)
Transmitting powerMax. 5 mW
DimensionsHousing: 103 mm long, Ø 52 mm (4.1 in, Ø 2.05 in)Thread: 30 mm long, G 1½ in
WeightApprox. 560 g (1.2 lb)
Transmitter
Power supply24 V DC ±10%
Power consumptionApprox. 3.5 W
Relay (max.)110 V AC / 1 A / 60 W
Fall-delay time1 to 15 s, continuously adjustable
WeightApprox. 172 g (6.1 oz)

Application examples

FlowJam S in real processes

FlowJam S monitoring plastic granulate behind a rotary valve
Plastic granulateIn free fall behind a rotary valve
FlowJam S monitoring activated carbon in exhaust air treatment
Activated carbonExhaust air treatment in a heat exchanger
FlowJam S monitoring carbon dust feed to a rotary kiln
Carbon dust feedPrimary firing in a rotary kiln

Common questions

FlowJam S FAQ

What does FlowJam S detect?

Two switching states for solids of all types: material flow, and material clogging, standstill or an empty pipe.

How does FlowJam S work?

Without contact, using microwaves and the Doppler effect to detect material movement at 0.1 m/s (0.33 ft/s) or faster.

Do deposits on the sensor affect FlowJam S?

No. The microwave penetrates material coating on the sensor, so movement behind the coating is still detected.

Can FlowJam S measure from outside the pipe?

Yes, if the container walls, housings or pipelines are non-metallic.

What temperatures and pressures can FlowJam S handle?

−20 to +80 °C and 1 bar as standard, up to 220 °C (428 °F) and 20 bar (290 psi) with a process adapter, and up to 1,000 °C (1,832 °F) with a ceramic flange.

How is FlowJam S mounted?

Screwed into a 1½ in threaded connection, with a DN 40 flange, or with a pipe clamp or other holding bracket.
