MoistIQ Continuous Inline Moisture Measurement for Bulk Solids

A system for measuring moisture in bulk solids online and in real time. It reads up to 8 inches into the material, so you get total moisture and not just the surface, and you can act on changes without waiting for the lab.

0–85%Measurement range, residual moisture
±0.1%Accuracy up to, depending on material
8 inDepth the sensor field reaches (203 mm)
NEMA 6Protection class (IP 67)
MoistIQ inline moisture sensor and transmitter
  • Real-time, inline moisture measurement, with accuracy up to ±0.1% depending on the material
  • Measures and averages up to 8 inches into the material for total moisture, not just the surface
  • Ideal for screw feeders, bins and conveyor belts
  • Maintenance-free, with ceramic, Teflon or POM sensor surfaces
  • ATEX Zone 20/0 options available
  • User-friendly Windows software and intuitive calibration
  • Stores up to 24 calibration recipes, 16 of them selectable by digital input
  • Long-term data logging, alarms and Modbus integration
  • No lab delays: act instantly on moisture changes

Use

Where MoistIQ fits

MoistIQ measures moisture in bulk solids online. The results can control a dryer, automate humidification, or simply monitor the process continuously.

Function

How the capacitive measurement works

MoistIQ uses a capacitive method that generates an electromagnetic field. It detects changes in the dielectric constant and in high-frequency attenuation.

Water has a very different permittivity from dry material, so the system can work out total moisture in real time, not just surface moisture.

The sensor field reaches up to 8 inches into the product.

Mounting and installation

Installation in two steps

  1. Weld the sensor flange.
  2. Install the sensor and wire it to the transmitter.

The sensor mounts by flange and has changeable faces. A complete system is the sensor, the transmitter and the flange, connected by a 4-conductor cable (3 m standard, up to 500 m).

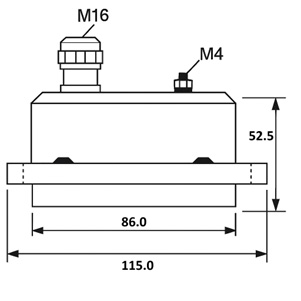

MoistIQ sensor dimension drawing
Sensor dimensions

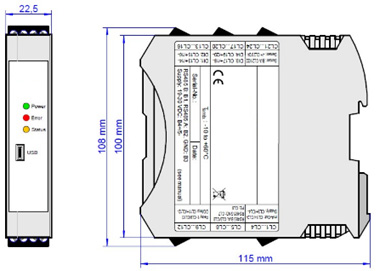

MoistIQ transmitter dimension drawing
Transmitter dimensions

Technical data

MoistIQ specifications

Metric values are from the manufacturer's data. Confirm critical values against the brochure PDF.

MoistIQ
Measurement range0 to 85% residual moisture
TechnologyCapacitance
ComponentsSensor, transmitter and flange
AccuracyUp to 0.1%
Sensor bodyStainless steel 1.4301
Sensor facePOM, ceramic or Teflon
Sensor mountingFlange, changeable faces
Cable4-conductor, 3 m (9.8 ft) standard
Max. cable lengthUp to 500 m (1,640 ft)
Ambient temperature32 to 158 °F (0 to 70 °C)
Process temperature32 to 194 °F (0 to 90 °C)High-temperature version: 32 to 248 °F (0 to 120 °C)MoistIQ EX version: 32 to 158 °F (0 to 70 °C)
Process pressure0 to 87 psi (0 to 6 bar)
Protection classNEMA 6 (IP 67)
Power supply24 V DC, max. 1.5 W
Outputs1 × 4–20 mA or 0–10 V1 × relay, 1 × transistor1 × RS485 Modbus
Inputs4 × digital (8–36 V DC, 2–14 mA)
ProgrammingPC software (free)
CalibrationUp to 24 calibration curves

Application examples

MoistIQ moisture measurement in real processes

MoistIQ measuring aluminum oxide moisture
Aluminum oxideMeasured with a sled
MoistIQ measuring animal feed moisture
Animal feedOn the bottom of a drag chain conveyor
MoistIQ measuring cellulose fiber moisture
Cellulose fiberOn the bottom of a screw auger
MoistIQ measuring cement moisture
CementOn the bottom of a silo
MoistIQ measuring coke moisture
CokeMeasured with a sled on a conveyor belt
MoistIQ measuring fertilizer moisture
FertilizerMeasured with a sled
MoistIQ measuring gelatine moisture
GelatineMeasured with a sled
MoistIQ measuring limestone moisture
LimestoneMeasured with a V-shaped sled
MoistIQ measuring malt moisture
MaltOn the side of a bin
MoistIQ measuring milk powder moisture
Milk powderOn the bottom of a conveyor

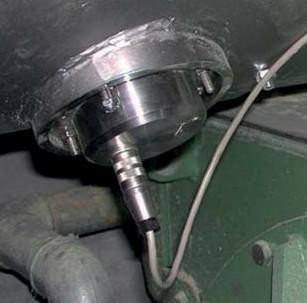

MoistIQ measuring plastic pellets moisture
Plastic pelletsOn the bottom of a bin
MoistIQ measuring sand moisture
SandMeasured with a V-shaped sled
MoistIQ measuring sugar beet moisture
Sugar beetOn the bottom of a screw auger
MoistIQ measuring wheat and maize moisture
Wheat and maizeOn the bottom of a bin
MoistIQ measuring wood pellets moisture
Wood pelletsOn the bottom of a screw auger

Common questions

MoistIQ FAQ

What does MoistIQ measure?

Moisture in bulk solids, online and in real time, from 0 to 85% residual moisture.

How does MoistIQ work?

It uses a capacitive method that generates an electromagnetic field and detects changes in the dielectric constant and high-frequency attenuation. Because water has a very different permittivity from dry material, it can work out total moisture.

Does MoistIQ measure only surface moisture?

No. The sensor field reaches up to 8 inches into the material, so it measures and averages total moisture, not just the surface.

How accurate is MoistIQ?

Up to ±0.1%, depending on the material.

Where is MoistIQ installed?

On screw feeders, bins and conveyor belts. The sensor mounts by a welded flange and is wired to the transmitter.

How many calibrations can MoistIQ store?

Up to 24 calibration recipes, 16 of which can be selected by digital input.
